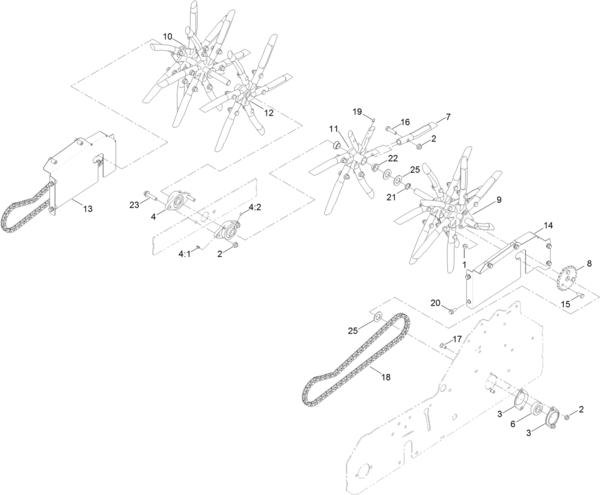

Toro Walkbehind Aerator Parts Diagram
Toro Walk Behind and Ride on Aerator Parts
Call 703 919 1379 to get Toro Aerator parts shipped to you!
Double click here to add text.
Reference Part Description and Number Number Quantity
1 104-8300 Nut-Nyloc 5/16-18 Flg x10
2 104-8301 Nut-Nyloc 3/8-16 Flg x38
3 105-9714 Flange Bearing x4
4 106-7126 Bearing Flange x2
4.1 302-58 Straight Fitting x1
4.2 3245-35 Set Screw x2
6 120-9350 Bearing Lock Collar x2
7 121-4894 Tine Coring x36
8 116-9896 Sprocket x2
9 121-4930 Tine Wheel LH x1
10 121-6072 Tine Wheel RH x1
11 121-6099 Tine Spyder x1
12 121-6096 Tine Spyder x1
13 126-1204 RH Chain Guard ASM x1
14 126-1206 LH Chain Guard ASM x1
15 322-4 Screw x6
16 323-8 Screw x36
17 3230-1 Carriage Bolt x4
18 121-6107 Chain Drive x2
19 302-19 Zerk x2
20 3234-47 Screw x12
21 32120-93 Retaing Ring x2
22 108519 Bushing x4
23 3234-19 Screw x2 24 69-8930 Washer x6
Toro Ride On Aerator Parts Diagram
Reference Part Description and Number. Number Quantity
1 116-8138 Main Frame ASM x1
2 Front Caster with Fork x2
3 116-6536-01 Weight x1
4 116-9135 Platform ASM with Rocker x1
5 116-7300 Access Cover ASM x1
5.2 121-6134 Decal -Tine Ground Operation x1
6 116-8258 Muffler Guard ASM x1 6.2 115-2047 Decal - Hot Surface x2
8 99-5107 Nut Lock x4
9 126-0015 Grommet x2
10 116-6612 Chain Guard RH x1
11 116-6611-01 Chain Guard LH x1
14 3234-40 Screw x4
18 104-8301 Nut - Flange x6
19 3256-24 Flat Washer x6
21 323-6 Screw x6
22 614672 Shoulder Bolt x2
23 1-811010 Plug x2
24 3256-6 Washer Flat x2
28 107-1865R Clamp x2
29 32144-10 Screw x2
30 104-7050 Tube for Owners Manual x1
31 104-7048 Housing Cap x1
We Can Get Any Toro Aerator Part and Ship Them to You Please Call Everett to Order Parts or for More Information 703 919 1379
