E&S Equipment can get replacement parts for your Kohler engine and ship them to your home or business.  We also offer parts pick up at our office in Manassas Virginia, if that is more convenient.  Our company can also get you brand new complete Kohler engines as needed.

Already have the part number of the Kohler part you need?  Great just call Trey at 703 919 5291 to check pricing and availability.  We also offer parts look up assistance for customers who do not have the part number already.  To find your correct part we need the part description, model number and serial number of the engine  (model number/serial number can be found on the engine).  Below are parts diagrams of some of the common parts we sell.

​Air Filtration Diagram for Kohler Engine CH20s 64725

                   Reference Number      Kohler Part Number and Description

                          2              20 341 01-s   Knob Cover                           3              24 153 20-s   Seal                           5              M-641060-s   Nut- HF                           6              28 112 01-s   Spacer                           7              24 096 01-s   Cover- Air Cleaner, Inner                           8              230046-s     Seal                           9 + 10          24 883 03-s1  Pre and Main Air Filter                           11             24 086 53-s   Screw                           12             24 126 141-s  Bracket Base Air Cleaner                           13             24 094 37-s   Base Cleaner, Air                           14             24 041 06-s   Gasket Base Air Cleaner                           15             25 086 84-s   Screw                           16             24 164 14-s   Intake Manifold                           17             24 041 01-s   Intake Manifold Gasket

Ignition and Electrical Diagram for Kohler Engine CH730-0132

                 Reference Number       Kohler Part Number and Description

 1               54 755 09-s   Stator Kit (includes 2)                         4               24 584 01-s   Ignition Module                          6               RC12YC     Spark Plug                         7               24 025 01-s   Flywheel                        11              24 157 07-s   Fan                        13              24 144 13-s   Front Drive Shaft                        15              24 162 34-s   Grass Screen                        19              41 403 09-s   Rectifier Regulator                         *               24 176 08-s   Wiring Harness

Head and Valve Diagram for Kohler Engine CH23S-76549

Reference Number        Kohler Part Number and Description

1               24 755 74-s   Valve Cover Plain (Includes 2-4)                           4               24 153 23-s   O-Ring, Valve Cover                           6               12 755 03-s   Retainer Kit                           7               12 173 01-s   Valve Spring Cap                           8               24 089 02-s   Valve Spring                           9               235011-s     Retainer Spring                           10              66 032 05-s   Valve Stem Seal                           11              24 318 68-s   1 Cylinder Head Assembly                           12              24 017 01-s   Valve Intake                           13              24 016 01-s   Valve Exhaust                           14              24 755 66-s   Valve Train Kit (Includes 16,19,20)                           15              25 351 01-s   Lifter Valve                           16              24 411 05-s   Push Rod                           17              24 041 40-s   Head Gasket                           19              25 186 01-s   Rocker Arm

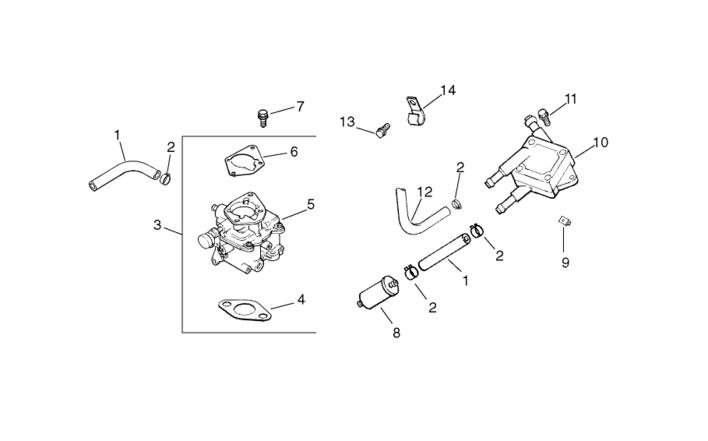

Carburetor and Fuel Pump Diagram for Kohler Engine CH20s-64667

                 Reference Number      Kohler Part Number and Description

3             24 853 43-s   Carburetor Kit (Includes 4-6)                          5             24 053 43    Carburetor Assembly                          8             24 050 02-s   Fuel Filter                          10            24 393 16-s   Fuel Pump                          *             24 757 01-s   Solenoid Kit                          *             24 757 02-s   Float Kit                          *             24 757 03-s   Carburetor Repair Kit                          *             24 757 07-s   Choke Repair Kit                          *             52 050 02-s   Oil Filter                          *             24 041 90-s   Crankshaft

Kohler Small Engine Parts

 Call 703 919 5291 to get Kohler parts shipped to you!

We Can Get Any Kohler Engine Part and Ship Them to You.  Please Call Trey to Order Parts or for More Information 703 919 5291
