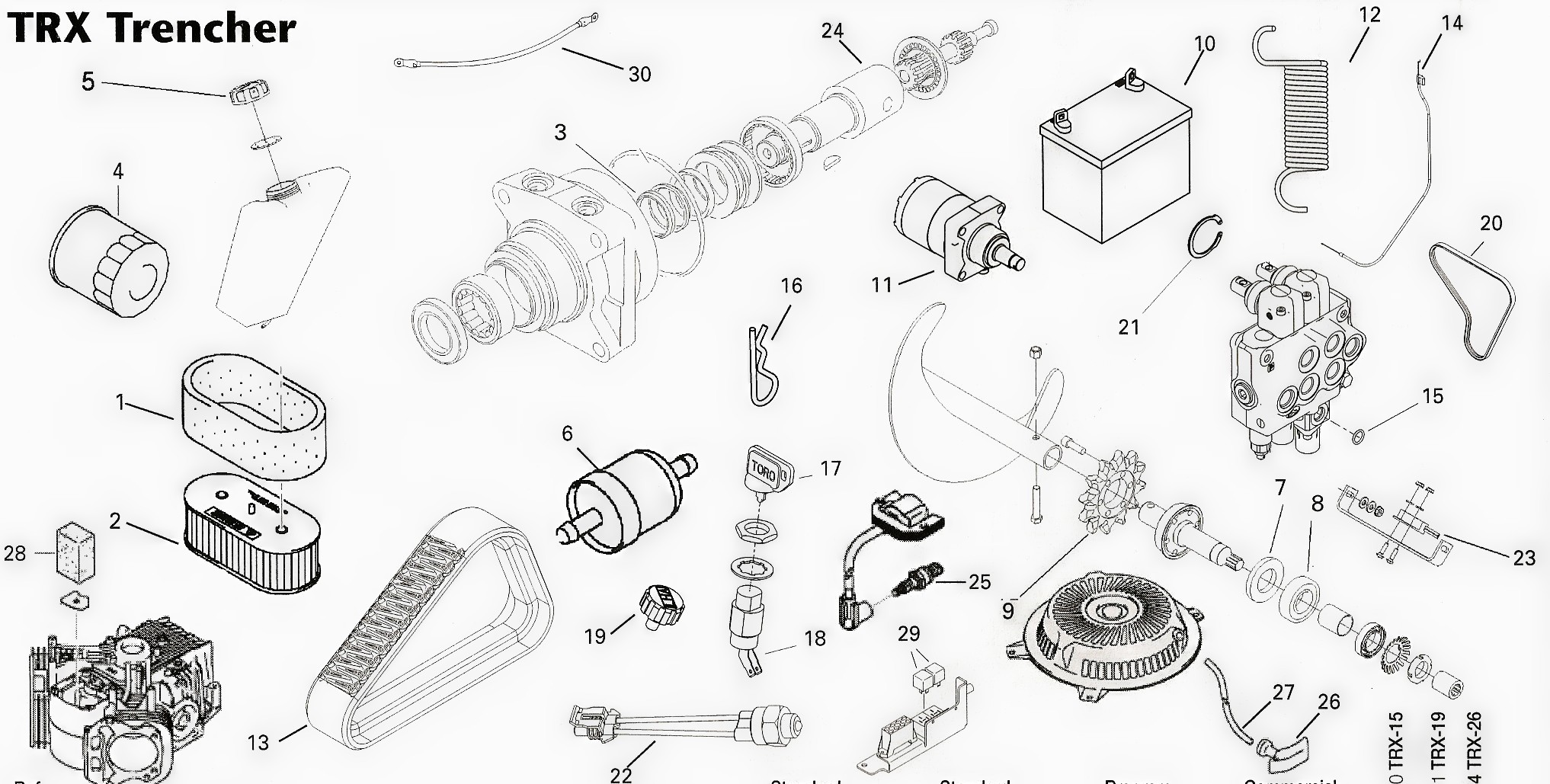

Toro TRX Trencher Parts

   Reference   Part    Number    Number

     1       115-6473

     2       115-6474

     3       100-6131

     4       KW10761

     5       104-7418

     6       121-4570

     *       251-259

     *       3296-53

     7       114-2955

     8       106-8871

     8       104-5311

     9       104-1964

     10      104-8162

     *       104-5309

     *       104-5310

    11       104-8470

    12       112-2738

    13       112-4816

    14       115-1211

    15       237-42

    16       3290-467

    17       63-8360

    18       29-5560

    18       104-2541

    19       68-6150

    20       114-2991

    21       106-7595

    22       72-4310

     *       93-4237

    23      100-1270

    24       99-3090

     *       105-6184

     *       107-1883

     *       114-8639

    25       115-6407

    26       115-6457

    27       115-6461

    28       115-6558

    29       98-7249

    30       117-6422

Part Description

Element Outside Air Filter

Element Inside Air Filter

Seal Kit

Oil Filter

Fuel Gas Cap

Fuel Filter

Ball Bearing

Nut Lock

Grease Seal

Ball Bearing

Ball Beaing

Trencher Sprocket

Battery

Retaining Ring

Lip Seal

Hyraulic Wheel Motor

Torsion Spring

Rubber Track

Control Cable

O-Ring

Hair Pin

Ignition Key

Switch On/Off

Ignition Switch Assembly

Breather

V Belt

Snap Ring Internal

Switch Ball

Bearing

Proximity Switch

Coupling Shaft

Seal Overhaul Kit

Seal Kit

Woodruff Key

Spark Plug

Starter Recoil Grip

Rope

Element Breather

Relay

Black Battery Cable

      Toro TRX Trencher Model this part is used on

Used on:  22970  22971  TRX15  TRX19

Used on:  22970  22971  TRX15  TRX19

Used on:  22970  22971 TRX15  TRX19

Used on:  22970  22971 TRX15  TRX19

Used on:  22970  22971  22974 TRX15  TRX19  TRX26

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  22971  22974  22973 TRX19  TRX26  TRX20

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  22970  22972         TRX15  TRX16

Used on:  22971  22974  22973 TRX19  TRX26  TRX20

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  All Toro TRX Models

Used on:  22970  22971 TRX15  TRX19

Used on:  22970  22971 TRX15  TRX19

Used on:  22970         TRX15

Used on:  22970         TRX15

Used on:  22971         TRX19

Used on:  22971  22974  22973 TRX19  TRX26  TRX20

Used on:  22974  22973         TRX26  TRX20
