Toro Dingo Hydraulic System Parts
Call 703 919 1379 to get these parts shipped to you!
Reference Part Number Number
1 99-3074
2 100-4163
2 99-1352
3 105-8370
3 107-9320
4 99-6162
4 106-3161
4 106-3162
5 95-3611
5 108-6262
6 106-5705
6 106-5706
6 106-9591
6 106-9590
7 106-9470
8 106-9422
9 68-6150
10 93-7160
11 54-0110
11 86-3010
11 99-5084
12 93-7498
13 354-79
14 353-989
15 237-42
16 112-2738
17 72-4310
* 105-6184
* 130-5175
* 130-5176
* 130-5195
Part Description
Gasket
Hydraulic Cylinder Kit
Seal Kit (for 100-4163)
Cylinder Tilt (2003 & UP)
Cylinder Tilt (2000 - 2002)
Hydraulic Cylinder Lift
Cylinder - Hydraulic
Cylinder - Hydraulic
V-Belt
V-Belt
Pump HYD LH
Pump HYD RH
Hydraulic Pump LH
Hydraulic Pump RH
Hydraulic Pump
Belt - Poly - V
Breather
Cap - Oil , Hyd (2000-2001)
Hydraulic Oil Filter
Hydraulic Oil Filter
Hydraulic Oil Filter
Plastic Plug
Dust Cap
Hex Plug
O-Ring
Spring - Torsion
Switch Ball
Seal Overhaul Kit
LH Lift Cylinder
LH Lift Cylinder
Tilt Cylinder
Toro Dingo Model this part is used on
Used on all Toro Dingo Models except: 22300 22302 22308 222 220-D 413
Used on: 22302 22303 22304 22305 22311 22312 220-D 320-D 222 322 220 323
Used on: 22302 22303 22304 22305 22311 22312 220-D 320-D 222 322 220 323
Used on: 22306 22307 22319 22320 22321 22322 22324 420 425 525N 525W 427N 427W 525W
Used on: 22306 22307 420 425
Used on: 22306 22307 420 425
Used on: 22308 413
Used on: 22308 413
Used on: 22306 22307 22321 22322 420 425 427N 427W
Used on: 22319 22320 22324 525N 525W 525W
Used on: 22306 22307 22321 22322 420 425 427N 427W
Used on: 22306 22307 22321 22322 420 425 427N 427W
Used on: 22319 22320 22324 525N 525W 525W
Used on: 22319 22320 22324 525N 525W 525W
Used on: 22308 413
Used on: 22308 413
Used on all Toro Dingo Models except: 22300 22302 222 220-D
Used on: 22306 420
Used on: 22303 22304 22305 22318 22311 22312 22317 22318 320-D 222 322 413 220 323 220 323
Used on: 22306 22307 22319 22320 22321 22322 22324 420 425 525N 525W 427N 427W 525W
Used on: 22300 22302 222 220-D
Used on all Toro Dingo Models except: 22300 22302 222 220-D
Used on all Toro Dingo Models except: 22300 22302 22304 222 220-D 222
Used on: 22319 22320 22324 525N 525W 525W
Used on: 22321 22322 427N 427W
Used on: 22321 22322 427N 427W
Used on all Toro Dingo Models except: 22300 22302 22303 222 220-D 320-D
Used on: 22308 413
Used on: 22327 22328 1000N 1000W
Used on: 22327 22328 1000N 1000W
Used on: 22327 22328 1000N 1000W

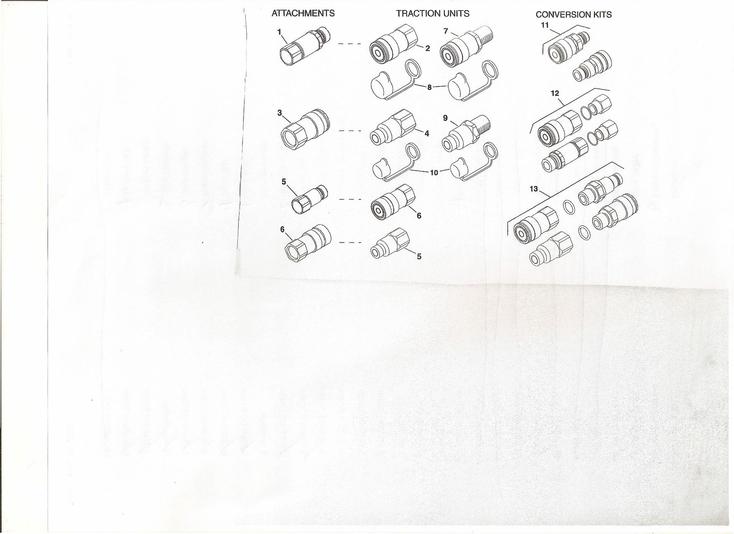

Toro Dingo Hydraulic Couplers
Reference Part Number Number
1 100-4701
2 96-1275
3 104-6134
4 100-4235
5 104-6114
6 104-6115
7 105-8394
8 100-8816
9 105-8395
10 105-8815
11 100-4789
12 100-4744
13 106-7695
Part Description
Nipple , Pressure - 7/8"
Coupler - 1-1/16"
Coupler - 7/8"
Nipple - 7/8"
Nipple - 3/4"
Coupler - 3/4"
Bulkhead Coupler ASM 1"
Coupler - Dust Cap
Bulkhead Nipple ASM 1"
Nipple - Dust Cap
Quick Connect Conversion
Conversion Kit - 7/8"
Conversion Kit - 7/8"
Toro Dingo Model this part is used on
Used on all Toro Dingo Attachments
Used on all Toro Dingo Models manufactured before the year 2000
Used on all Toro Dingo Attachments
Used on all Toro Dingo Models manufactured before the year 2000
Used on: 22308 413
Used on: 22308 413
Used on all Toro Dingo Models manufactured after the year 2000
Used on all Toro Dingo Models
Used on all Toro Dingo Models manufactured after the year 2000
Used on all Toro Dingo Models
Original Style to Flush Face (not used on tracked models)
Female Coupler, Female Nipple, 2-3/4" to 7/8" adapters
Used on: 22308 413
We Can Get Any Toro Dingo Hydraulic Part and Ship Them to You. Please Call Everett to Order Parts or for More Information 703 919 1379
